20-63 mm 2" Socket Fusion Welding Machine

63MM Window Top Display Digital Socket Fusion Welding Machine
LED Window Temperature Display
Normal Color: Green/Bule/Orange/Red
Brand Name: FUYI TOOLS /OEM
Different Material Pipes and Fittings Fusion Temperature:
PP-R 260°C PB 240°C
HDPE 220°℃

Digital Socket Fusion is the method of joining a pipe and fitting together. It's the many popular in the market. The user can according to different material of pipes and fittings adjust the temperature by themself. The temperature is indicated on the LED Screen. "RDY" and "HEAT" indicator Lamp. "HEAT" means heating, the light is red. you should wait for the temperature to arrive at set temperature. "RDY" means ready, the lamp is green, then you can start to fusion the pipes and fittings.

Digital pipe fusion machine is a digital display model. Compared with a normal socket fusion machine, the digital pipe welding machine has a window on the handle to show the working temperature and buttons to set the temperature. The working temperature can be set between 200 to 280. So the digital pipe fusion machine can be used to weld PP-R, HDPE, PB and other material pipes and fittings.

The double color handles are more comfortable, the nylon material is strong and reliable, 1.5square 3 meter rubber electric wire with grounding safety plug, please insert the plug into the safe outlet when using the tool. The plug shouldn't be changed arbitrarily.

In order to protect the safety of persons and property, make sure to place the tool safely when it works normally. You should placed it on the stand when the tool is not used. Be careful of high temperatures when the socket fusion welding machine works normally. To avoid hurting the skin, you must wear gloves when operating or changing welding sockets& spigots.

The welder is designed for heating and joining plastic pipes & fittings including PPR, PB, and HDPE via heated aluminum sockets and spigots. The individual tools are composed of a quality electric heating plate, electric controller and comfortable nylon plastic handle shell. The sets come complete with sockets and spigots, the socket fusion tool and a metal carrying case.

Compared with normal digital welding machine, this machine is equipped with a top window to show the temperature.

FUYI TOOLS 20-63MM DIGITAL SOCKET FUSION WELDING MACHINES ADVANTAGES:
1. Using algorithm PID Microcontroller, temperature control system can react faster to external temperature fluctuations.
2. Independent research and development of an automatic testing line to ensure the temperature tolerance s 2°C.
3. There is a circuit board research and development department in our factory. There are STM lines in our factory.
4. Sockets with Japanese Daikin PTFE coating, for longer lifetime and great fusion effect.
5. In case the intelligent control device fails, there is a warning temperature. The warning temperature is based on setting temperature plus 30°C.l
(For example, if your setting temperature is 260°C, the warning temperature is 290°C).

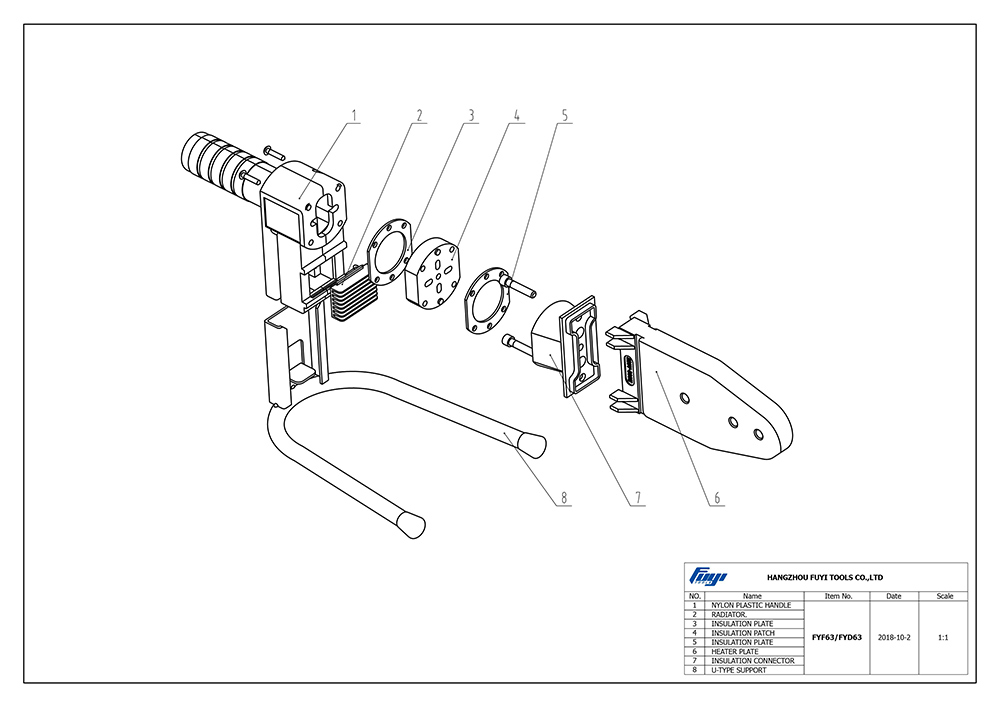

1. Nylon Double Color Handles
2. Radiator
3. Insulation Plate
4. Insulation Patch
5. Insulation Plate
6. Heating Plate
7. Insulation Connector
8. U-Type Support
