Digital Socket Fusion Welding Machine

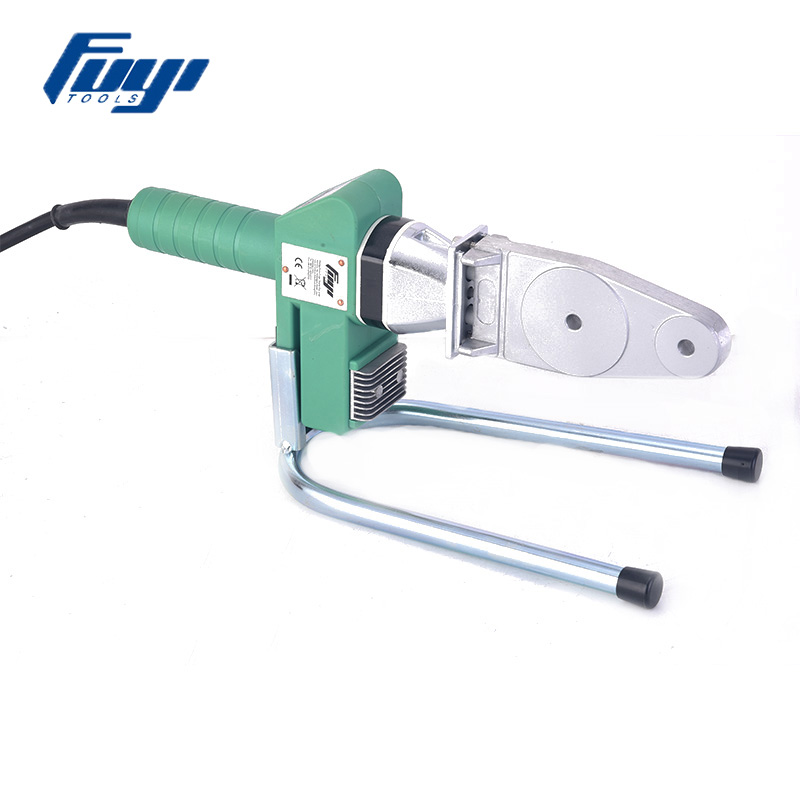

FYDTC40 LED Screen Digital Display Socekt Fusion Welder Machine for PPR Pipe

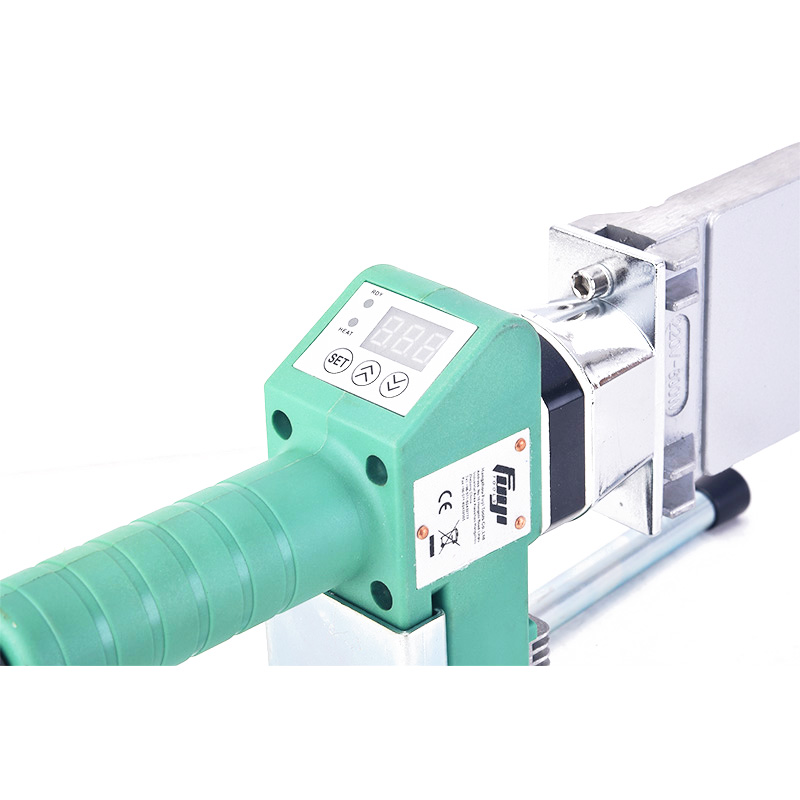

FYDTC40 LED Screen Digital Display Socekt Fusion Welder Machine for PPR Pipe is a high-performance welding equipment specially designed for PPR pipes. One of its core features is its LED screen digital display technology. With this technology, users can clearly monitor key parameters during the welding process, such as temperature, pressure, etc. The LED screen display is intuitive and easy to understand, making operation easier, helping users easily master the welding process and ensure welding quality.
The FYDTC40 welding machine also uses fusion welding technology to ensure the reliability and stability of welding. Its unique fusion welding system can precisely control the welding temperature and pressure to ensure the firmness and sealing of the welded joint. Whether in outdoor or indoor environments, FYDTC40 can achieve reliable welding results and ensure the safe and stable operation of the pipeline system.

E-mail: [email protected]
Inquiry Us Now!
PREV：FYDTC63 20-63mm Window Digital Display Socekt Fusion Welder Machine
NEXT：FYD200-1 PE PPR Butt Socket Fusion Welder Hot Melt Welding Machine

  • 1. You can adjust the corresponding temperature according to different pipe materials, which are indicated on the digital display screen. Increased flexibility and combination options for everyday use.
    2. Electronic intelligent control systems,  can realize automatic temperature compensation.
    3. Sockets with Japanese gold lacquer, for longer lifetime and great fusion effect.
    4. Reinforced nylon handles, it's more comfortable.
    5. Heating interval signal lights.
    6. Two kinds of removable supporting stands are available at all times.
    7. A set of dedicated wrenches is convenient to use and carry.
    8. Thickened steel box, it will not be broken after long use.
    9. In case the intelligent control device fails, there is a warning temperature. The warning temperature is based on setting temperature plus 20℃. When this happens, the heating panel will stop heating. (For example, if your setting temperature is 260℃, the warning temperature is 280℃).



    Technical Data

    FYDTC32

    Rated Voltage:

    110V/220V

    Rated Frequency:

    50/60HZ

    Rated Power：

    600W

    Working Temp：

    220°C-260°C

    Temp.Tolerance:

    ≤2°C(professional test method：

    Warning Temp:

    set temperature +20°C

    Environment Temperature:

    -5°C-45°C

    Working Range Ф mm:

    20,25,32,40

    Suit Material:

    PP-R/PB/PE/PVDF

    Net Weight(Set):

    5.05KGS

    PCS/Carton:

    4PCS

    N.W/Cartons:

    17.5 KGS

    G.W/Cartons:

    18.5 KGS

    Cartons Size:

    49x43.5x20CM

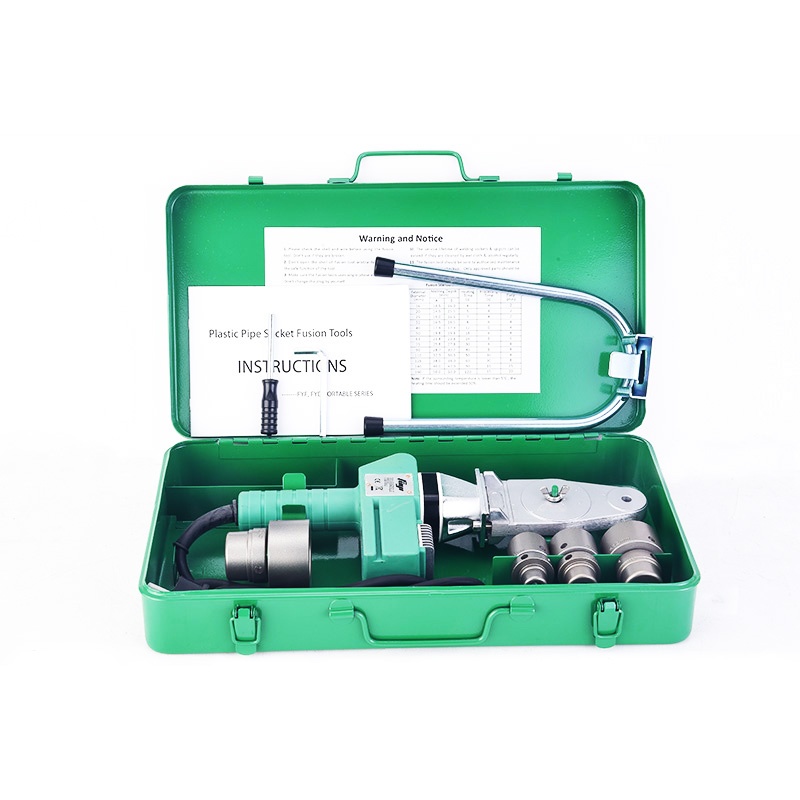

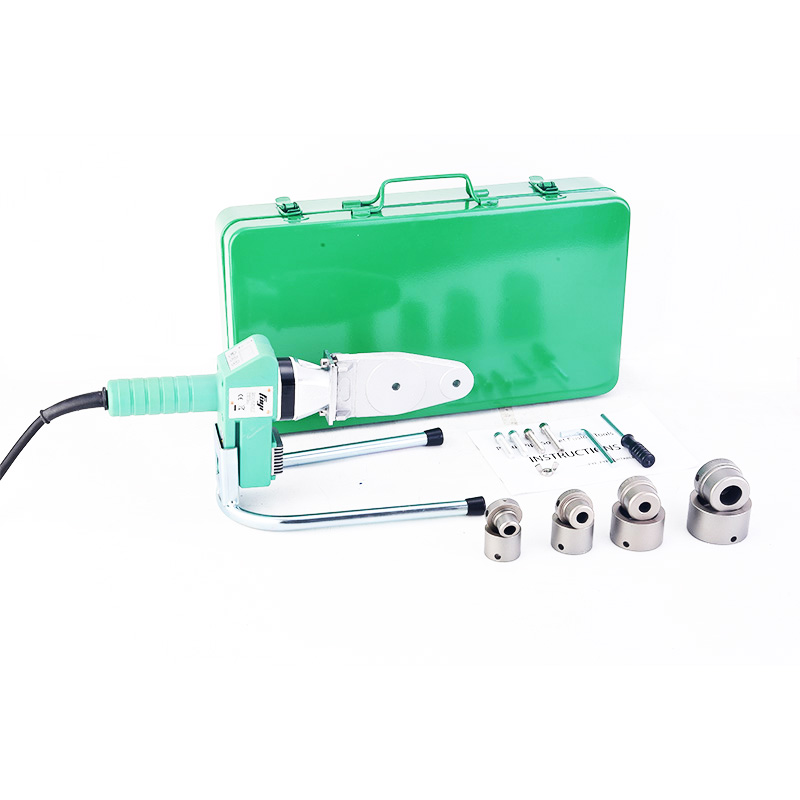

    Including the following accessories

    1 PC Fusion Welding Machine

    1 PC Floor Stand

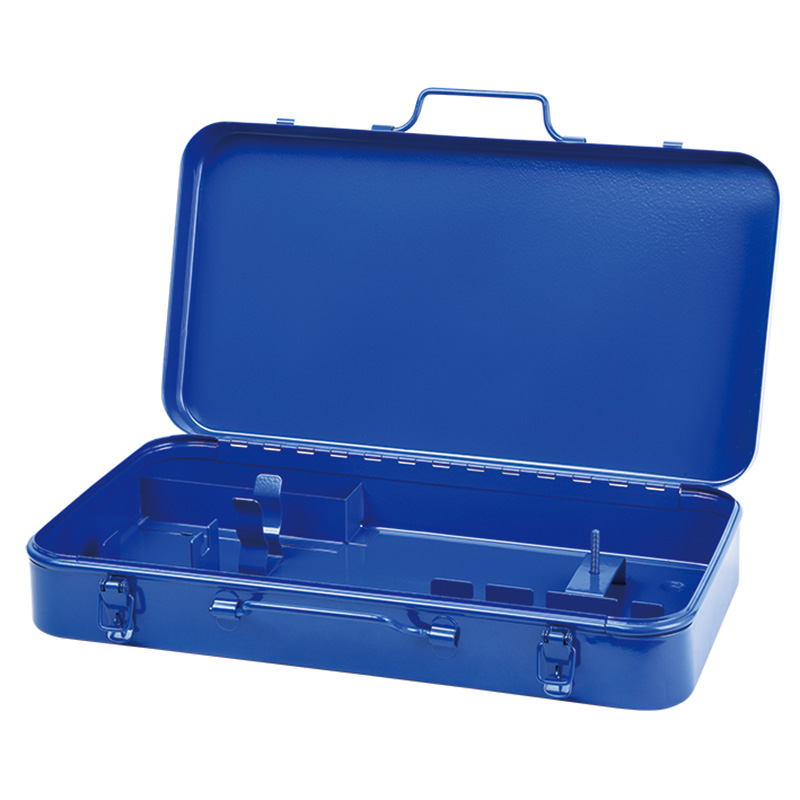

    1 PC Metal Case

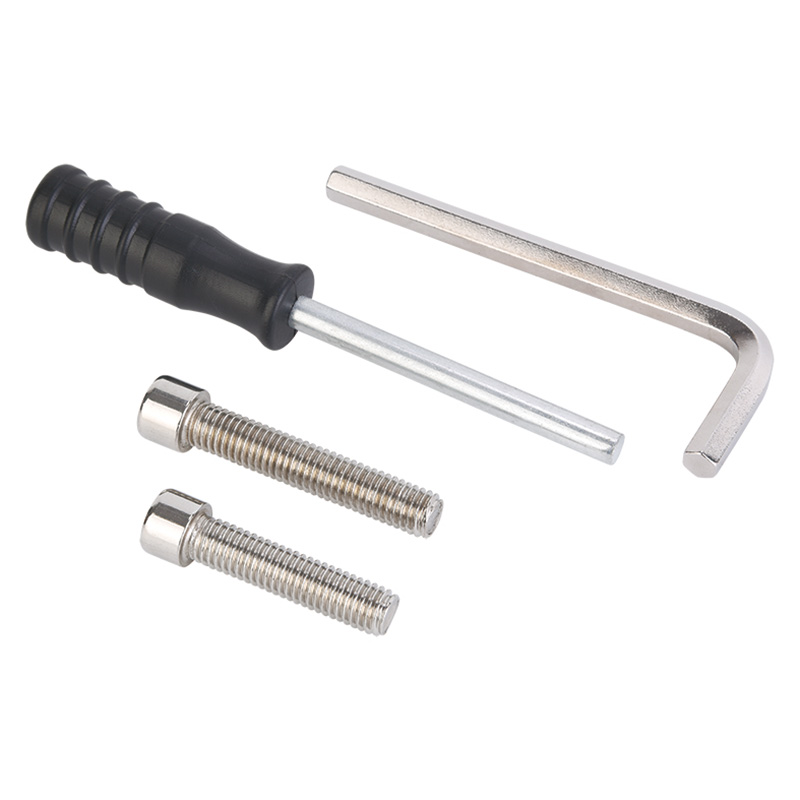

    1 PC Bag of Bolts and Hex Key Wrench

    1 PC Table Mounting Clamp (Optional)

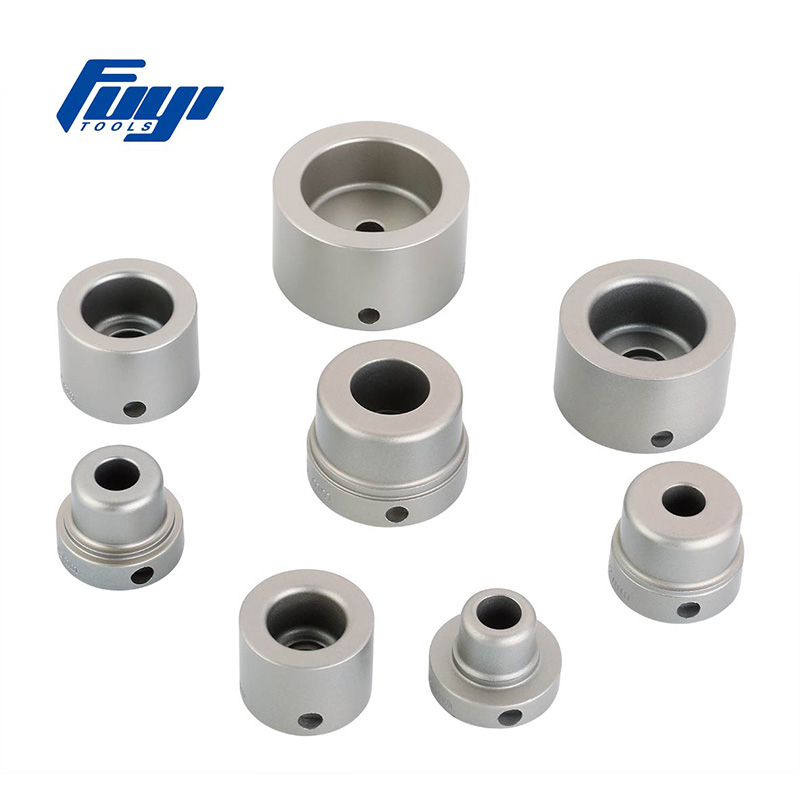

    Sockets D20、D25、D32、D40
