How to use digital socket fusion welding machine

The socket fusion welding machine for joining pipes and fittings.
There are two series in our factory. One is constant temperature socket fusion welding machine, set temperature 260C, it's for fusion welding PPR pipes and fittings.
The other is digital socket fusion welding machine. You can according to different thermoplastics pipes and fittings to adjust the temperature by yourself. It's for joining PP-R, PE, PB, PVDF pipes and fittings.

The suggestion temperature for below pipes
PP-R 260°℃
PB 240°℃
HDPE 220°℃
PVDF 172°℃

There are "RDY"and "HEAT"Indicator lamp in the machine.

HEAT that meaning heating, you should wait. When the LED in on red in machine must be heating up to the max. working temperature.
RDY that meaning ready , you can start to work after RDY light is green.

FUYI TOOLS digital socket fusion welding machine advantage
1. Using the algorithm PID Microcontroller,  temperature control system can react faster to external temperature fluctuations.
2. Independent research and development of an automatic testing line to ensure the temperature tolerance s 2°C.
3. There is circuit board research and development department in our factory. There are STM lines in our factory.
4. In case the intelligent control device failure, there is the warning temperature. The warning temperature is based on setting temperature plus 30°C. (For example, if your setting temperature is 260°C, the warning temperature is 290°C).

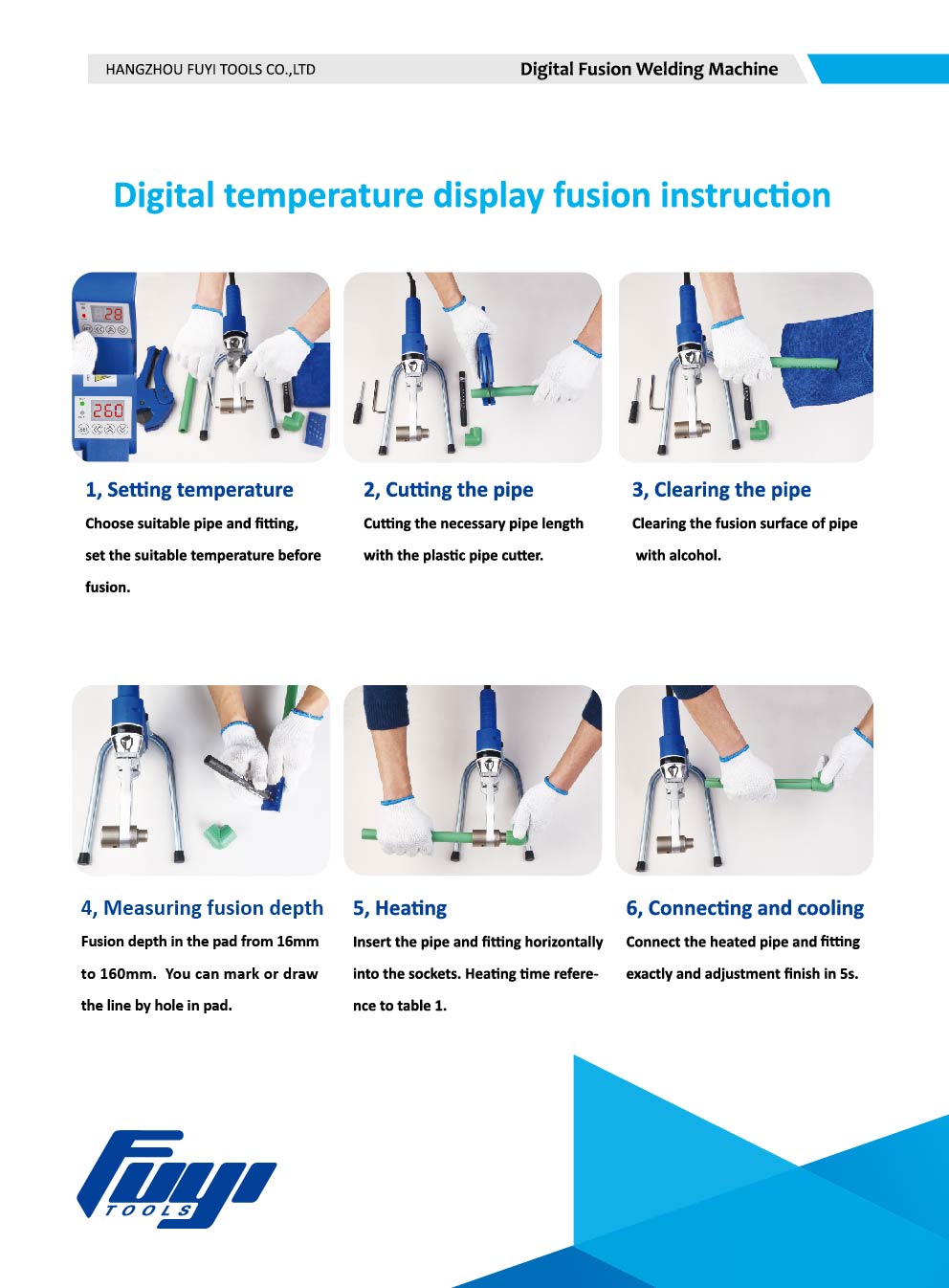

How to use digital socket fusion welding machine
1. Setting Temperature Choose suitable pipe and fittings, set the suitable temperature
2. Cutting the pipe Cutting the necessary pipe length with the plastic pipe cutter.
3. Cleaning the pipe Cleaning the fusion surface of pipe with alcohol
4. Measuring Fusion Depth Fusion depth in pad from 16mm to 160mm. You can mark or draw the line by hole in pad.
5. Heating Insert the pipe and fitting horizontally into the sockets. Heating time reference to instruction book in the kit.
6. Connecting and cooling Connect the heated pipe and fitting exactly and adjust finish in 5s.
