Home / Product / Socket Fusion Welding Machine / Digital Socket Fusion Welding Machine / FYDLL63 Digital Display PPR Plastic Pipe Welding Machine

FYDLL63 Digital Display PPR Plastic Pipe Welding Machine Custom

All Products PDF Download
FYDLL63 Digital Display PPR Plastic Pipe Welding Machine FYDLL63 Digital Display PPR Plastic Pipe Welding Machine
  • FYDLL63 Digital Display PPR Plastic Pipe Welding Machine
  • FYDLL63 Digital Display PPR Plastic Pipe Welding Machine
Digital Socket Fusion Welding Machine

FYDLL63 Digital Display PPR Plastic Pipe Welding Machine

The digital display technology used by FYDLL63 Digital Display PPR Plastic Pipe Welding Machine makes the operation more intuitive and simple, and the operation interface is clear and easy to understand, even operators without professional technical background can easily get started. Its precise temperature control system ensures accurate temperature control during the welding process, thereby ensuring the quality and stability of the welded joint.
The FYDLL63 Digital Display PPR Plastic Pipe Welding Machine has good applicability and can be used for welding PPR plastic pipes of different specifications and thicknesses. Whether it is a smaller diameter pipe or a larger diameter pipe, this machine is up to the task, ensuring consistent and stable welding results. Its flexibility and versatility make it ideal for all types of piping projects.

E-mail: [email protected]
Inquiry Us Now!
PREV：FYDLL110 Portable Socket Fusion Welding Machine for PE/PP/PVDF/PB
NEXT：FYDLL32 PP-R/HDPE Digital Welding Machines and Plastic Fusion Equipment

  • KEY FEATURES
    1. You can according to different pipe materials adjust the corresponding temperature, the temperature indicated on the digital display screen. Increased flexibility and combination options for everyday use.
    2. Electronic intelligent control system,  can realize automatic temperature compensation.
    3. Sockets with high-quality PTFE coating, for longer lifetime and great fusion effect.
    4. Reinforced nylon handles, it's more comfortable.
    5. Heating interval signal lights.
    6. Two kinds of removable supporting stands are available at all times.
    7. A set of dedicated wrench convenient to use and carry.
    8. Thickened steel box, it will not be broken after long use.
    9. In case the intelligent control device fails, there is a warning temperature. The warning temperature is based on setting temperature plus 20℃. When this happens, the heating panel will stop heating. (For example, if your setting temperature is 260℃, the warning temperature is 280℃).




    Rated Voltage:

    110V/220V

    Rated Frequency:

    50/60HZ

    Rated Power:

    800W

    Working Temp:

    220°C-260°C

    Temp.Tolerance:

    		 ≤2°C(professional test method)

    Warning Temp:

    set temperature +20°C

    Environment Temperature:

    -5°C-45°C

    Working Range Ф mm:

    20,25,32,40,50,63

    Suit Material:

    PP-R/PB/PE/PVDF

    Net Weight(Set):

    7.96KGS

    PCS/Carton:

    2PCS

    N.W/Cartons:

    15.92KGS

    G.W/Cartons:

    17.92KGS

    Cartons Size:

    46.0x26.5x26.5CM

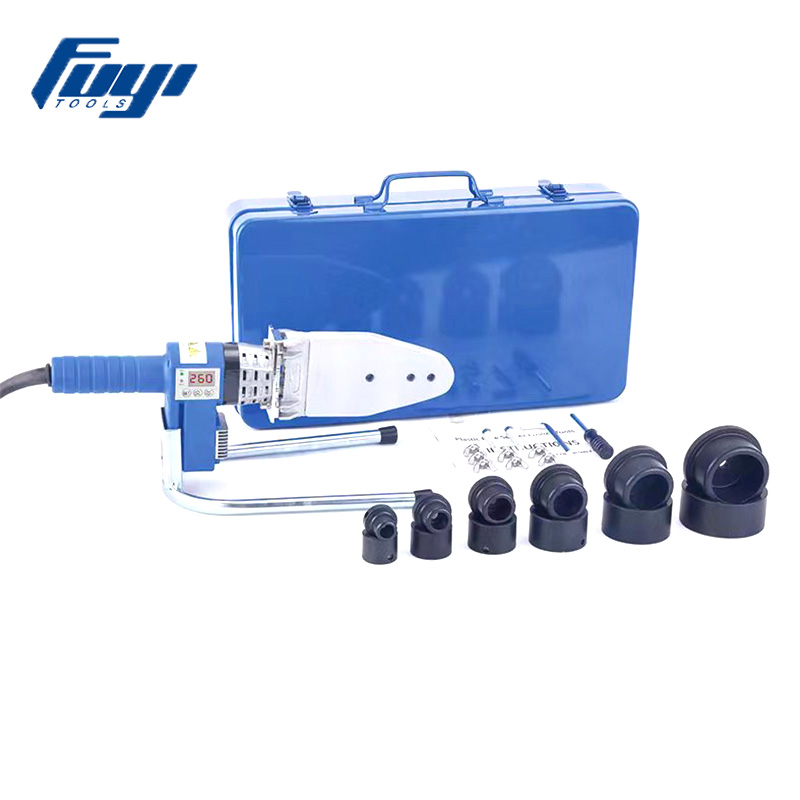

    Including the following accessories

    1 PC Fusion Welding Machine

    1 PC Floor Stand

    1PC Metal Case

    1 PC Bag of Bolts and Hex Key Wrench

    1 PC Table Mounting Clamp (Optional)

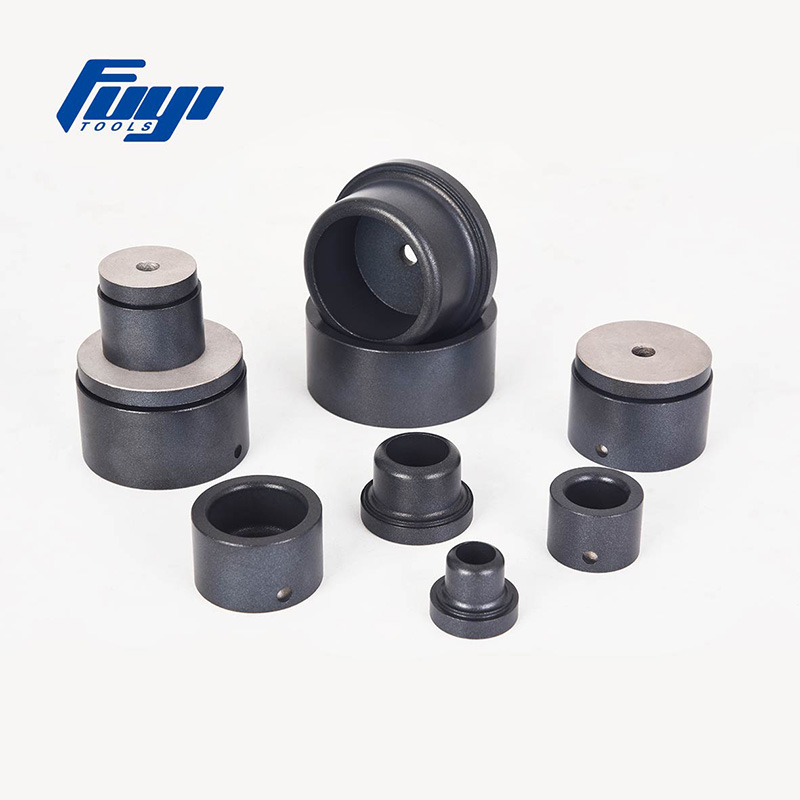

    Sockets D20、D25、D32、D40、D50、D63
